2015 Performance

Description

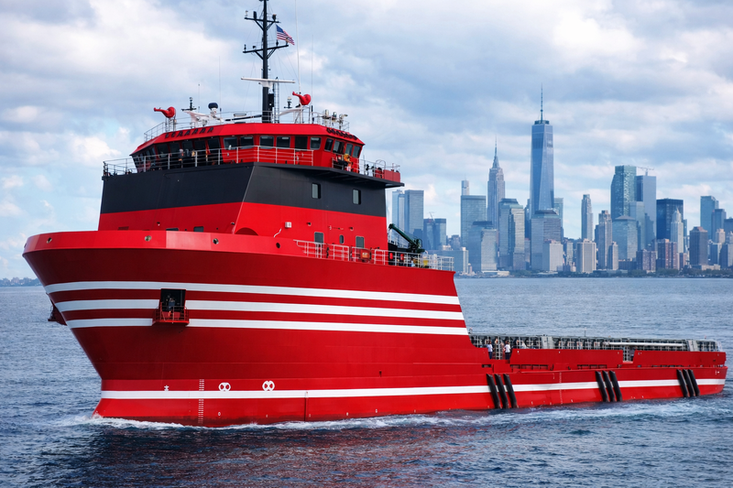

built in 2015, this dp2 platform supply vessel is classed by abs: +a1, osv, (e), +ams, +accu, +dps-2, enviro, uwild. the vessel measures 82.9 m loa with a beam of 17.7 m and a maximum draft of 5 m. it has a grt of 2,918 and an nrt of 1,310, with a dwt of 3,570 mt. propulsion is provided by diesel-electric machinery delivering a total of 9,280 bhp to dual z-drives with 2 x 2,000 kw fpp propellers in kort-nozzles. the vessel features a clear main deck area of 880 m² capable of supporting 5 t/m² aft deck strength, with 58 x 16 m clear deck dimensions. fuel and water capacities include 940 m³ fo, 1,650 m³ fw, 130 m³ potable water, 230 m³ drill/ballast water, and 1,710 m³ liquid mud (2.7 sg max). accommodation is provided for 36 pob in 2 x 1-man, 15 x 2-man, and 1 x 4-man cabins, with a hospital and galley seating for 20. the vessel is equipped with 3 x mru, 3 x dgps, microwave and laser reference systems, mud mixers, tank cleaning systems, and an rsq 450 a rescue boat, with msd for 32 persons. transfer rates include 170 m³/h fo, 91 m³/h fw, 170 m³/h drill/ballast water, 43.5 m³/h bulk, and 230 m³/h liquid mud. anchoring is via 2 x 4,710 lbs ac-14 hhp anchors with 250 m of 40 mm chain per side, and deck handling is supported by a 4.5 t crane at 6.1 m. performance includes a maximum fuel consumption of 25.4 m³/day at 13.5 kn, cruising at 14.7 m³/day at 11 kn, and an economical 11.8 m³/day at 10 kn, with a range of 16,900 nm at 11 kn.
