2009 Navigator

Description

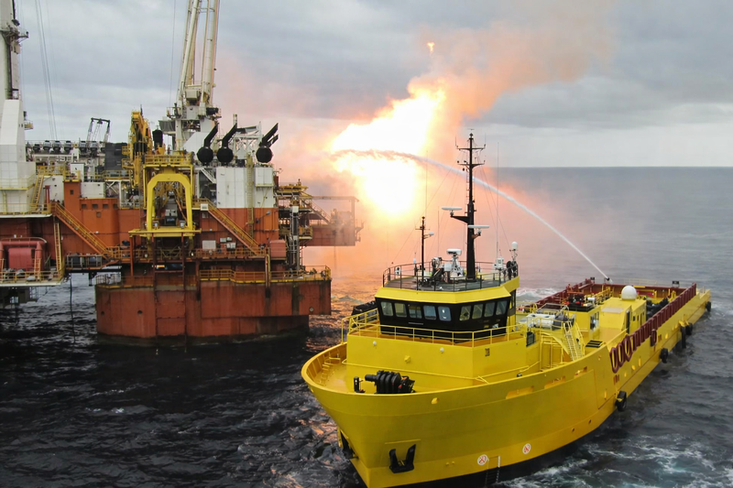

this abs-classed dp2 psv, built in 2009, has a loa of 85.4 m, a beam of 16.5 m, and a max draft of 5.18 m, with a dwt of 2,738 mt, grt of 1,842, and nrt of 777, flying the us flag. she is powered by a total of 5,365 bhp from (2) caterpillar 3516 tier 2 main engines driving azimuthing propellers in nozzles, supported by (2) caterpillar c18 tier 2 generators, and equipped with bow thrusters and a rolls royce bps for enhanced maneuverability. the vessel achieves a max speed of 11.5 knots and a cruising speed of 10.0 knots, with a deck area of 2,743 m² capable of supporting 2.6 t/m². capacities include drill/rig water 598.6 m³, liquid mud 1,700.8 m³, fuel 946.4 m³, potable water 275.3 m³, and dry bulk 169.9 m³, with a total deck space of 2,743 m² suitable for complex offshore operations. firefighting capabilities include (2) ffs electronic remote-controlled water monitors delivering 5,284 gpm @ 400 ft, and the vessel features advanced navigation and communications electronics including furuno fr-8122, furuno gp-37, furuno fs-1503, furuno fm-8800s, furuno fa-150, furuno fe-700, furuno rc-1815, cyscan, radascan, ivcs 2000, microsoft office, gds idirect vsat, and maptech navigator pro. accommodations are provided in seven air-conditioned/heated staterooms for 25 pob, arranged as 1 ×1, 2 ×2, 2 ×4, and 2 ×6 berths, offering comfort for extended offshore missions. additional features include a sentinal engine alarm, rescue boat, electronic welding machine, and blackout prevention system, making the vessel highly versatile for rig support, supply, and emergency response operations.
