2007 Offshore

Description

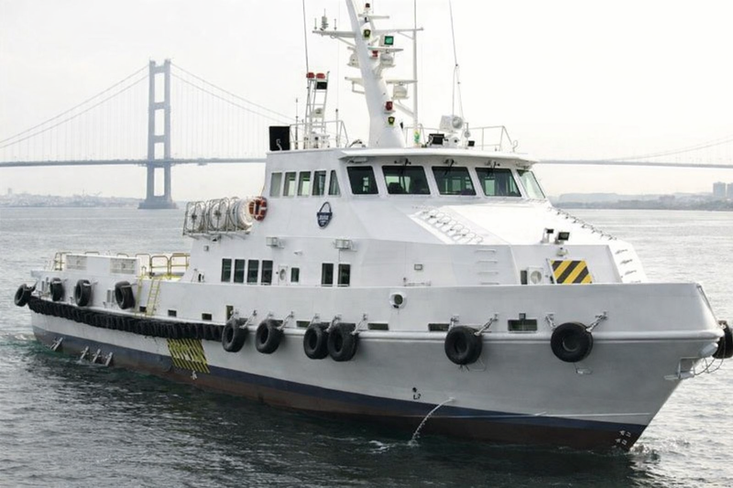

this 2007 built fsv measures 36.00 m loa with a 32.50 m lbp, 7.60 m b, and 3.65 m depth, featuring a maximum draft of 1.88 m and a freeboard of 1.50 m, providing stability and operational flexibility for offshore tasks. classed dnv with a1 notation as an offshore service vessel r4, the vessel has a grt/nrt of 239.00 t / 72.00 t and a deadweight of 113.00 t, making it suitable for carrying moderate cargo and equipment loads. the vessel’s deck offers a clear area of 80.00 m², with a carrying capacity of 25.00 t and deck strength of 2.00 mt/m², capable of handling deck cargo, containers, and mission-specific equipment efficiently. powered by 3 x cummins kta 38 m2 m/e, delivering a total of 4050 bhp / 3022 kw at 1900 rpm, propulsion is provided through 3 x fp propellers, supplemented by a bow thruster driven by a 75 kw electro-hydraulic pump for enhanced maneuverability in confined or offshore conditions. steering is controlled via 2 duplex electro-hydraulic pumps, while electrical power is supplied by 2 x cummins 6bt5.9-d(m) a/e rated 91 kw @ 1500 rpm, ensuring reliable onboard systems and auxiliary operations. the vessel achieves a maximum speed of 22 knots and an economic speed of 18 knots at 20 t dwt, balancing performance with fuel efficiency. fuel and freshwater capacities are 55.57 m³ and 28.00 m³, respectively, with dedicated cargo discharge pumps capable of 30 m³/hr @ 5 bar for fuel oil and 50 m³/hr @ 5 bar for freshwater, supported by a 25 m³/hr bilge pump, ensuring operational independence during extended offshore missions. deck handling equipment includes a leeson electric anchor windlass, and accommodations support 62 pax along with 10 crew (1p x 2, 2p x 4), designed for comfort and safety during extended operations. the vessel is equipped with comprehensive life-saving and safety systems, including 8 x 25 men solas-compliant life rafts, providing rapid evacuation capacity. firefighting systems include external fi-fi capabilities equivalent to 1/4 fifi, delivering 600 m³/hr with a 130 m throw, supported by internal co2 fi-fi systems and optical multi-sensor fire detection and alarm systems, ensuring both environmental protection and crew safety. this osv is purpose-built for a wide range of offshore service activities, combining high-speed performance, robust deck capacity, advanced propulsion and maneuvering systems, and extensive safety, firefighting, and lifesaving equipment, making it a versatile platform for offshore support, crew transfer, and cargo handling operations.
