1999 Navigator

Description

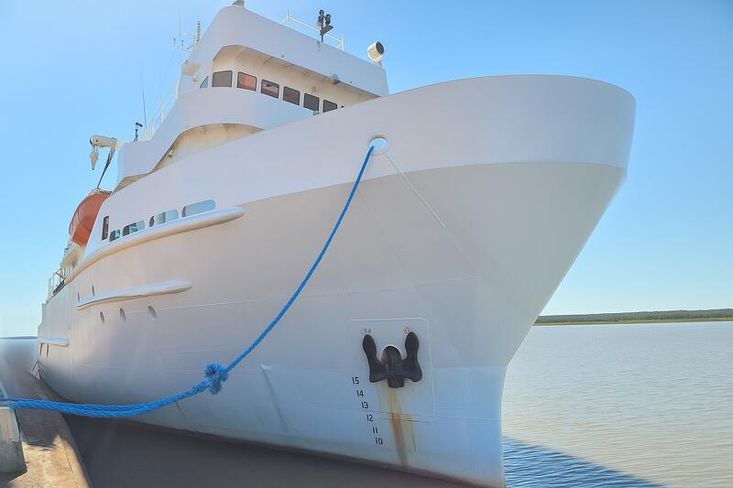

this dp-1 offshore supply vessel (osv) built by reputable shipyard in louisiana, u.s. is currently under uracus class and flies vanuatu flag. she featuring a 67.1 m loa, beam of 14.0 m and a draft ranging from 2.74 m to 4.17 m. with a 1,255 gt, 376 nt, and a deadweight (dwt) of 1,656 mt, she is designed to provide efficient offshore support and cargo transport operations. the vessel is powered by 2 x emd 16-645-e6 main engines delivering a total of 3,900 bhp, the vessel achieves a max speed of 12.0 kts and a cruise speed of 10.0 kts, with fuel consumption of approximately 215 gal/h at full speed and 120 gal/h at cruising. propulsion is via twin 4-blade fpps of 2,428 mm diameter, supported by independent steering rudders for enhanced maneuverability. additional thrust is provided by 1 x smi fpp tunnel bow thruster (755 hp) and 1 x smi fpp tunnel stern thruster (525 hp). electrical power is supplied by 2 x cummins nt855 generators, each rated at 250 kw, operating at 480 v / 60 hz / 3-phase. her working main deck measures 42 m x 12 m (487 m²), rated for a deck load of 3 mt/m², capable of carrying up to 1,046 mt of deck cargo. the vessel’s liquid and dry bulk capacities are well suited for offshore operations, including 3,050 bbl of brine, 3,050 bbl of liquid mud (split system), and 8,135 ft³ of dry bulk. she also carries 105 m³ of potable water, 428 m³ of rig fuel, and 100,250 gal of rig water. pumping systems operate at 80 psi, providing discharge rates of up to 1,200 gpm (273 m³/h) for brine and mud, 400 gpm (91 m³/h) for potable water, and 380 gpm (86 m³/h) for dry bulk, with a total flow rate capacity of 2,400 gal/min (546 m³/h). the navigation suite includes a furuno mu-201 cr radar system, furuno gp-39 gyro compass, furuno fa-1202 ais, datamarine d3000 echosounder, and furuno gp-170 gnss navigator, among other standard furuno and icom marine communication units, ensuring safe and reliable offshore operation. overall, this uracus-class osv is well maintained and combines solid cargo capacity, efficient propulsion, and a comprehensive navigation package, making her a capable and dependable vessel for a wide range of offshore supply and support duties. this is ideal candidate/ valuable investment for a start-up company involved in logistics marine operations globally.
