2011 Offshore

Description

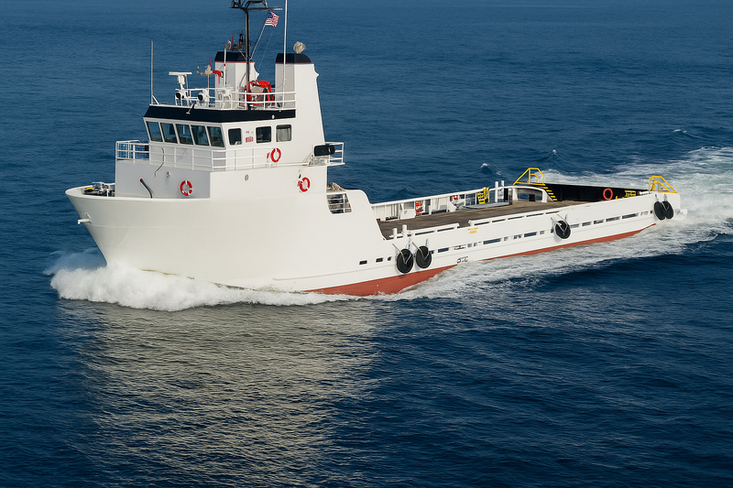

this offshore supply vessel, built in 2011 in the usa and jones act compliant, is classed abs a1, uscg l with dp1 capability. she has a dwt of 500 lt, a length overall of 51.82 m, a beam of 10.97 m, and a molded depth of 3.50 m, drawing 2.59 m light and 3.04 m loaded. propulsion is provided by 2 x cummins kta 38mo, delivering a total of 1,700 bhp, supported by 2 x 86 kw generators and a 450 hp bow thruster, giving her a service speed of 9.5 kn and a maximum speed of 10.5 kn. the vessel offers accommodations for 28 persons, with 4 crew berths, 24 passenger berths, and seating for 12 in the mess. her main work deck measures 306.58 m² with dimensions of 9.14 m x 33.53 m and a strength of 540 lbs/ft². tank capacities include 1,520 bbl drill water, 60,686 usg fuel, and 14,000 usg potable water, with additional storage of 63,864 usg. navigation and communication systems feature dual furuno radar, dual gps, gyro compass, vsat internet and e-mail, satellite phone, 3 x vhf, depth recorder, and dp system. fuel consumption is 87 usg/hr at full power, 58 usg/hr at conservation speed, and 60 usg/day while on dp mode. discharge capacities reach 400 usg/min @ 80 ft for drill water, potable water, and fuel oil. this is ideal candidate for sat/ air diving, rov/ imr, survey, supply, seismic/ recovery scopes of work. additional equipment such as ahc knuckle-boom crane, a-frame, rov or portable sat/ air diving systems can be provided upon request. dp-2 upgrade will take approx. 3-4 months with extra cost if of interest.
