2018 Offshore

Description

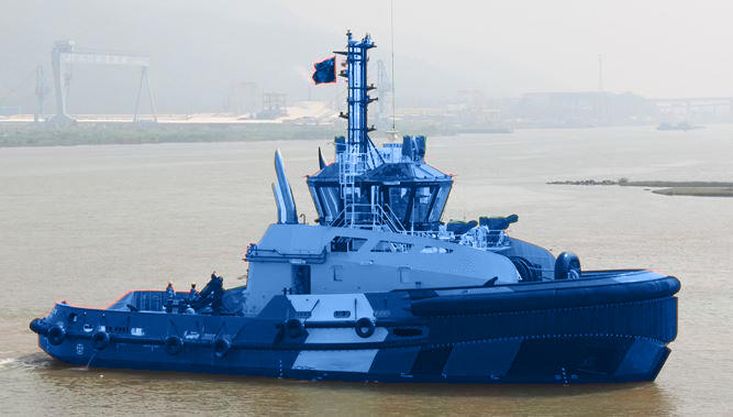

this high-performance 32.00m escort tug was built in 2018 , designed by robert allan ltd, and classed under lloyd’s register (?100a1 tug, escort tug, fire fighting ship 1 with water spray, ? lmc, ums, *iws for unrestricted voyages). with a grt of 496 and nrt of 148, the vessel features a breadth of 12.00m and a design draft of 4.20m, with a maximum navigational draft of 5.53m. powered by 2 x caterpillar 3516c(hd) main engines, each rated at 2,525kw @ 1,800 rpm, the vessel delivers a total bhp of 6,770 to 2 x schottel srp 510 fp propellers, achieving a top speed of 13.69 knots and a bollard pull of 82.25t (ahead) / 78.25t (astern). electrical power is supplied by 2 x cummins qsm11d(m) gensets, each rated at 265kw @ 1,500 rpm. the tug is fully equipped for offshore support, featuring a rolls-royce heavy-duty escort winch (etwh 2000/800/aw24g2) with a brake holding capacity of 200t, a tow winch (tw 2000/100h) with a 720m x 52mm swr drum capacity, and a palfinger pk12000m deck crane (swl 1.7t @ 6.1m outreach). firefighting capabilities include a ffs sfp 300x400pc fifi pump (2,800m³/hr @ 119m head), 2 x ffs 1200/300 dual-purpose foam/water monitors (1,200m³/hr @ 10 bar), an oil dispersant system (tetra v-jet nozzle type p& s), and a taiko kikai ush-05 oily water separator. tank capacities include 205.4m³ of fuel oil, 32.6m³ of freshwater, 6.6m³ of dispersant, and 6.6m³ of foam. the bridge is outfitted with a gmdss a1+a2+a3 package, including furuno x-band far1518 radar, furuno fs-2575 ssb, 2 x furuno fm-8900s vhf w/ dsc, furuno fe 800 echo sounder, furuno felcom-18 inmarsat c, furuno nx-700a navtex, furuno gp-1870 chart plotter, furuno fa-170 ais, and furuno gp-170 gps. additional systems include a furuno sc-50 satellite compass, anschutz nautopilot np60 autopilot, furuno br 500 bnwas, furuno ds-80 speed log, and mcmurdo e5 epirb, mcmurdo s5 sart, 2 x mcmurdo r5 hand-held vhfs. the vessel is fully air-conditioned and provides accommodation for 10 crew, configured as 2 x 1-berth cabins for officers and 4 x 2-berth cabins for crew. it is mlc 2006 compliant and fitted with a taiko kikai sbh-15 sewage system and detcon x40 lng protection system with 6 gas detectors.
